斐讯N1救砖记之TTL大法【亲身经历】

变砖过程

先前刷的CoreELEC9.0.2版本,想升级9.0.3。这个时候9.0.3的优盘已做好,错误的插在了N1靠近HDMI的USB插口,ssh输入命令reboot update,然后去N1那里看,出错了!再重启就卡在开机画面不动了,感觉是砖了……

总结:降级、刷错包、刷机时断电,都可能变砖。

救砖尝试

1、尝试:U盘启动,失败!!
2、尝试:拆机 短接,线刷W大的2.1和2.2,失败!!传送门:【V2.1】 | 【V2.2】
3、尝试:加秘钥线刷V3救砖包,失败!!传送门:【V3】


拆机 继续尝试,TTL救砖

参考N1不能通过网络刷机后拆机救砖
如果只是不能进线刷模式,导致不能刷机,又不能通过网络进入刷机模式,可以通过用镊子短接2个点,强行进入刷机模式,刷机!!
如果还刷不成功请继续看!

准备工具:

  • 电烙铁和焊锡
  • 公母、公公头杜邦线若干
  • 排针
  • 镊子
  • 螺丝刀等拆机工具

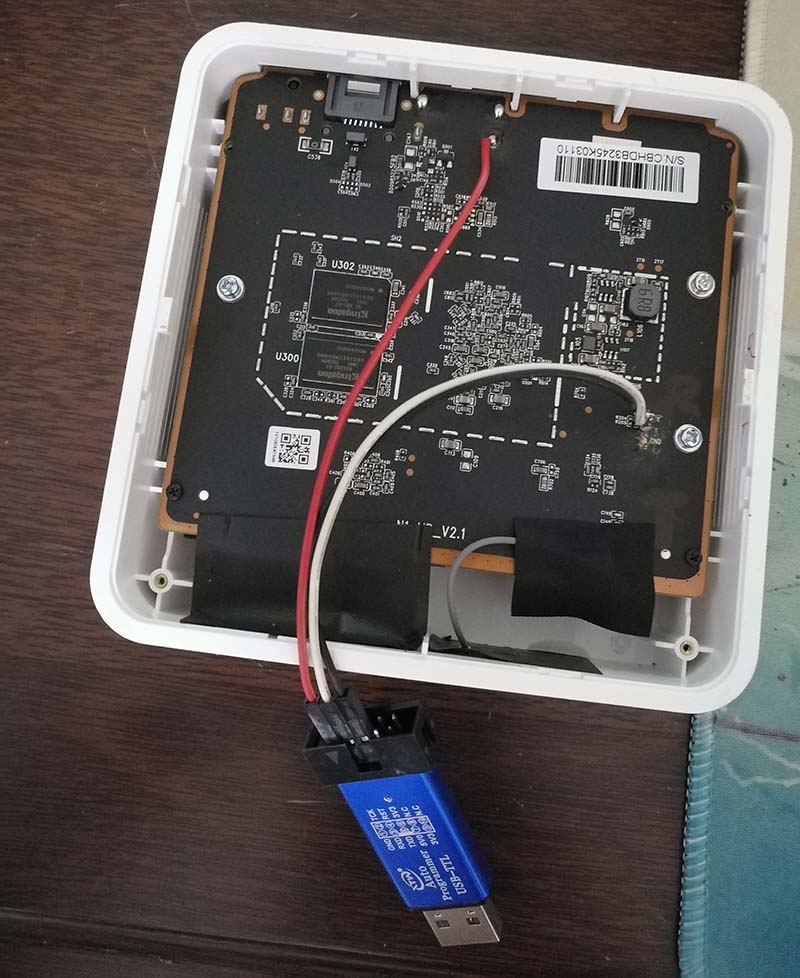

焊接RX/TX/GND
RX - TX
TX - RX
GND - GND

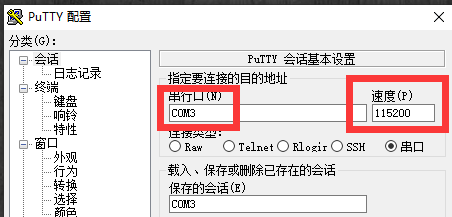

用USB转串口,连接电脑,设置串口号(设备管理器中查看)和波特率115200
盒子上电看到串口打印信息(恩山论坛玩家说,有回显说明没真砖,BootLoader还在)。
进入Uboot命令行:uboot命令行的启动方式,板子启动后在PC端的putty界面中通过串口快速按任意键或者输入ctrl+c,即可进入uboot命令行模式。
用户由p230# 变成了 gxl_p230_v1#
在这个模式下,将N1降级恢复线刷的3个文件boot.imgbootloader.imgrecovery.img三个文件拷到一个fat32格式的U盘中,(U盘必须是单分区的),一定要确定文件,没有问题,必须是v2.19版本的。
将U盘插入N1盒子,putty中逐条输入如下三条命令更新系统boot:

usb_update  bootloader bootloader.img
usb_update  recovery recovery.img
usb_update  boot  boot.img

逐条执行命令后,串口返回的信息:

usb_update bootloader bootloader.img 执行返回:

gxl_p230_v1#usb_update  bootloader bootloader.img
usb_start_count 0
(Re)start USB...
USB0:   USB3.0 XHCI init start
Register 2000140 NbrPorts 2
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 2 USB Device(s) found
       scanning usb for storage devices... init_part() 278: PART_TYPE_DOS
1 Storage Device(s) found
[fat]Filesize is 0xa4200B[0M]
[fat]0x:leftSz 2000 < BPS 4000, gotSz 2000
[MSG]Down(store) part(bootloader) sz(0xa4200) fmt(normal)
[MSG]totalSlotNum = 0, nextWriteBackSlot 11
[fat]Filesize is 0xa4200B[0M]
[fat]0x:leftSz 200 < BPS 4000, gotSz 4200
[MSG]Burn Start...
mmc switch to boot0 success
mmc switch to boot1 success
mmc switch to user success
[MSG]align bootloader sz from 0xa4200 to 0xa8000
[MSG]Burn complete
BURN bootloader.img to part bootloader OK!
=====>Burn part bootloader in fmt normal OK<======

usb_update recovery recovery.img 执行返回:

gxl_p230_v1#usb_update  recovery recovery.img
usb_start_count 1
[fat]Filesize is 0x1172a00B[17M]
[fat]0x:leftSz 2000 < BPS 4000, gotSz 2000
[MSG]flash LOGIC partCap 0x2000000B
[MSG]Down(store) part(recovery) sz(0x1172a00) fmt(normal)
[MSG]totalSlotNum = 0, nextWriteBackSlot 1
[fat]Filesize is 0x1172a00B[17M]
[MSG]Burn Start...
[fat]0x:leftSz 2a00 < BPS 4000, gotSz 2a00
[MSG]Burn complete
BURN recovery.img to part recovery OK!
=====>Burn part recovery in fmt normal OK<======

usb_update boot boot.img 执行返回:

gxl_p230_v1#usb_update  boot  boot.img
usb_start_count 1
[fat]Filesize is 0xd88a00B[13M]
[fat]0x:leftSz 2000 < BPS 4000, gotSz 2000
[MSG]flash LOGIC partCap 0x2000000B
[MSG]Down(store) part(boot) sz(0xd88a00) fmt(normal)
[MSG]totalSlotNum = 0, nextWriteBackSlot 1
[fat]Filesize is 0xd88a00B[13M]
[MSG]Burn Start...
[fat]0x:leftSz a00 < BPS 4000, gotSz 8a00
[MSG]Burn complete
BURN boot.img to part boot OK!
=====>Burn part boot in fmt normal OK<======

gxl_p230_v1#

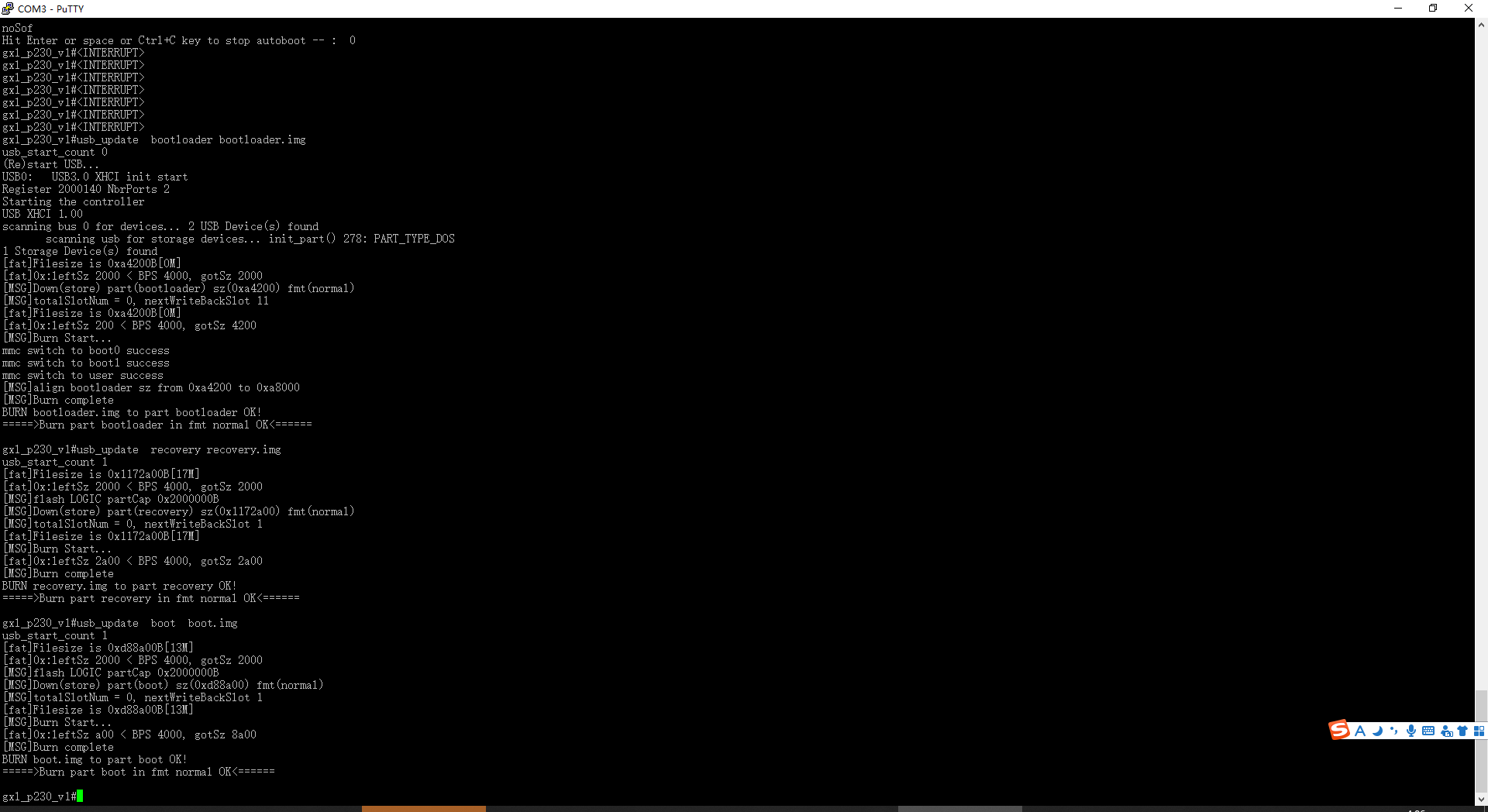

如图:

降级3个文件后,如果还是不能通过网络进入线刷模式或者短接触点刷机依然失败的,可以继续看!


终极TTL大法

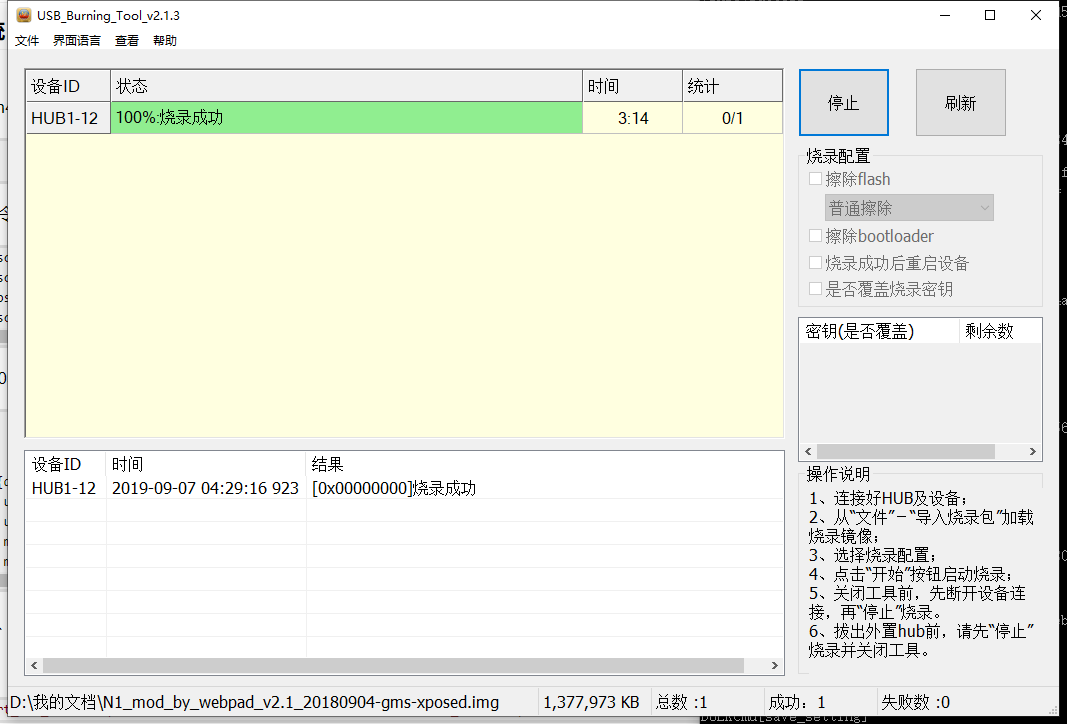

N1通过USB转串口双公头线同时连接电脑,putty进入uboot命令行模式后,打开刷机工具选好刷机包,点击开始
uboot命令行,可以通过putty输入

update

串口返回信息见下面。
刷机开始,祝您成功!!!

2019年9月11日补充:

刷机成功后,一定要重新【fastboot 烧录】刷3个降级文件

如果不重新刷降级文件,会出现未知问题,已知的有:
1、有线网卡、无线网卡MAC不固定,蓝牙不固定
2、最严重的,每次重启卡画面,一定要断电才能正常重新启动。
降级方法详见:https://www.right.com.cn/forum/thread-322223-1-1.html


附:救砖成功记录

从156行update命令开始
